Bystry Construction, Typical Project









                   Bystry's Typical Project Sequence and Procedures

Example: Torres A-Gadda-Da-Vida French Country. Project Length :149 Days




PLANNING: Design Services, Blue Prints, Permits

Energy Start Planning-Preconstruction Inspection

 3D Views Exterior-choose finishes

3D Views Interior-choose finishes 7 days

2D Blue Prints,  obtain permits 7 days

SITE PREP 2 days

Home Positioning 1 day

SITE WORK 5 days

Site prep and tree removal 1 day

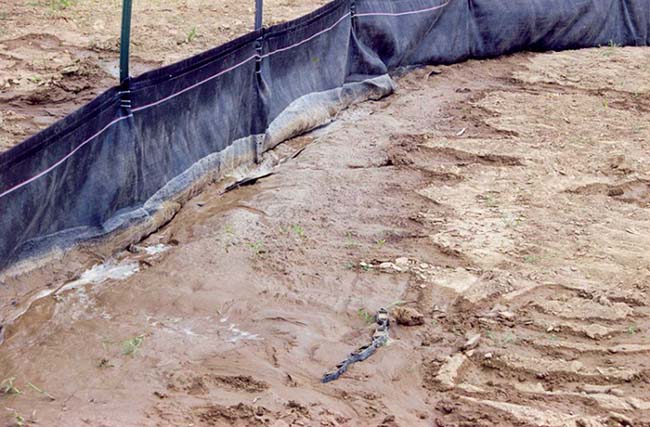

SILT FENCE 1 day



Driveway, properly slopped and compacted 1 day



FOOTING, proper depth, width compaction-1 day



Utilities 5-10  days

Reinforce Footing, correct steel size -1 day



Pour Concrete, proper PSI, slump and temperature-1 day



Sock Pipe, to prevent drainage issues-1 day



FOUNDATION:  precast concrete, pre-engineered-1 day



 FOUNDATION:  CMU (block), proper temperature, level, plumb, joint size-1 day

FOUNDATION: termite pretreatment-1 day



WATERPROOFING SERVICES: Foundation spray with water caring and insulating membrane-2 days



WATERPROOFING SERVICES: Envelope, windows and penetrations properly sealed-3 days



FRAMING:14-21 days

By optimizing framing design, we can greatly reduce energy losses from thermal bridging through the exterior walls. To accomplish this:

Employ specific framing layouts to eliminate unnecessary framing members

Make sure the headers are sized correctly

Locate openings to match framing members

Use optimum value engineered (OVE) techniques, such as turned-stud corners, stand-off wall

intersections and optimized window locations, to reduce thermal bridging in corners and wall

Panelize wall sections to minimize confusion in the field





Increase the dimension of the wall framing, typically from 2x4 framing to 2x6 framing

The thicker the studs, the more energy-efficient the wall system, provided that the wall cavity is properly insulated. While increasing the dimension of the wall framing will require design changes, it adds little or no cost to traditional, 2x4 framing methods. Features of the design could include inline framing at 24 inches on center; location of first-floor headers to the rim area; and incorporation of optimized framing techniques to limit framing member count.

Framing: energy efficient techniques:

insulated headers and reflective sheathing



Radiant Barrier



CONCRETE FLATWORK, radon and moister barriers, reinforcements 1 day



Broom finish driveway 2 day



Slick Finish Basement/Garages 1 day



Stamp Back Patio/ Front Porch 2 day



ELECTRICAL SYSTEMS 8 days

PLUMBING SYSTEMS 9 days



HVAC SYSTEM 8 days





ROOFING , insure proper felting and waterproofing-5 days



INSULATION. insure proper ventilation- 7 days



Energy Efficiency Air Sealing and Caulk Package-1 day

Ensure a tight seal throughout the structure



GYPSUM drywall)

 GYPSUM drywall - Screws only instillation to prevents pops- 26 days

GYPSUM drywall - Moister resistant on the bottom, because of contact with concrete floor



BRICK

 Water proofing, control joins, expansion joints, weep holes, flashing, proper air space, tie-ins, proper joint size, lintels, slanting...

,

Stone

Proper water proofing and sheathing protection behind it

Arches and Design

Steps

To code safety installation and proper settlement prevention

SIDING: proper drainage, flashing, caulking, staggering- 21 days



GUTTERING 2 days



CABINETRY. proper blocking, level and fastening



COUNTERTOPS-2 days



INTERIOR TRIM-14 days



STAIR SYSTEM: 7-14 days





WOOD FLOORING install perpendicular to floor system and protect, insuring proper moister protection and staggering



CARPET. Proper seaming, stretching and padding



TILE & CERAMICS. Water proofing, underlayment installation, fall assembly, sealing-21days



PAINT, 3 coat system with tinted primer for scratch protection. 14-21 days





HARDWARE DOOR & CLOSET



SITE IMPROVEMENTS 7 days

Erosion control and retaining

Top Soil

Sod

Straw and Seed

PLANNING: Design Services, Blue Prints, Permits,

Energy Star Inspection



CONSTRUCTION CLEAN UP, 5 days





Punch list 5 days



 Homeowners are moving in...
